GZGY Industrial Automation OEM ODM Manufacturer Supply Automatic Retractable Automated skylight designed for roof and terrace with low noise and fast speed, 100% waterproof. We are a professional manufacturer in Shanghai China.

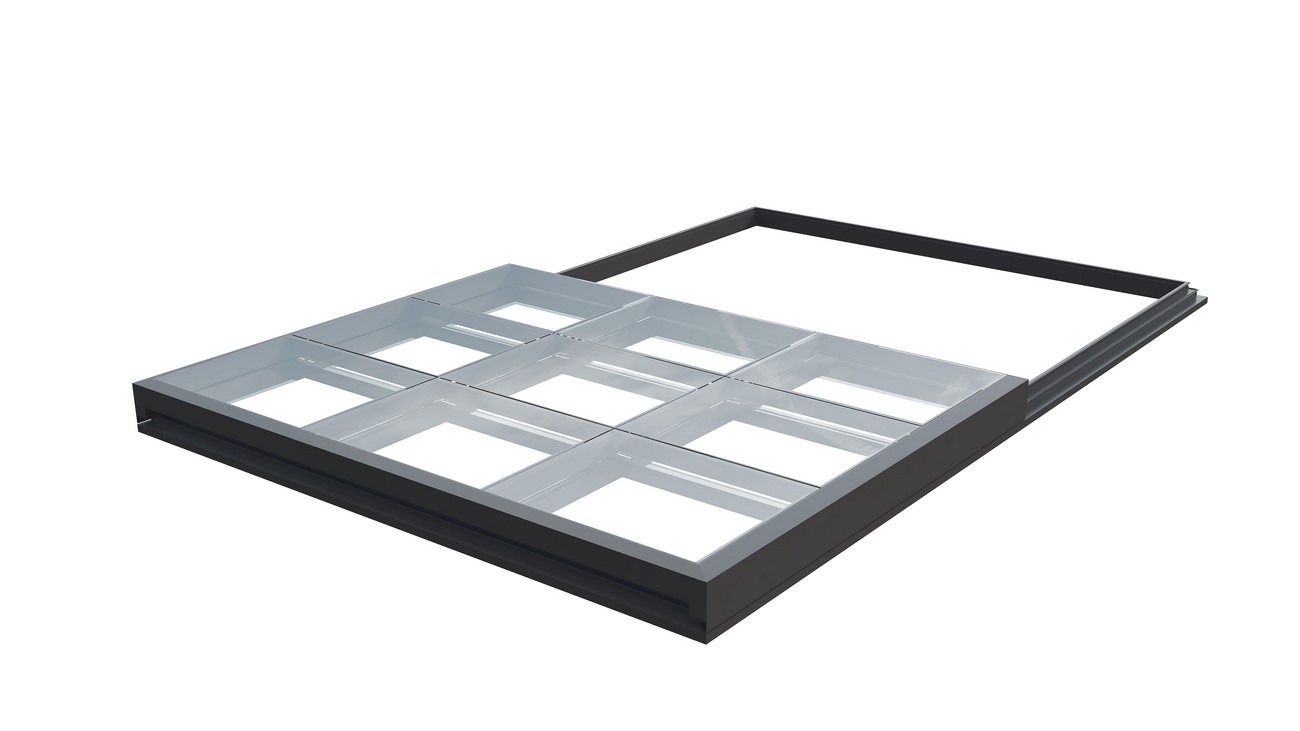

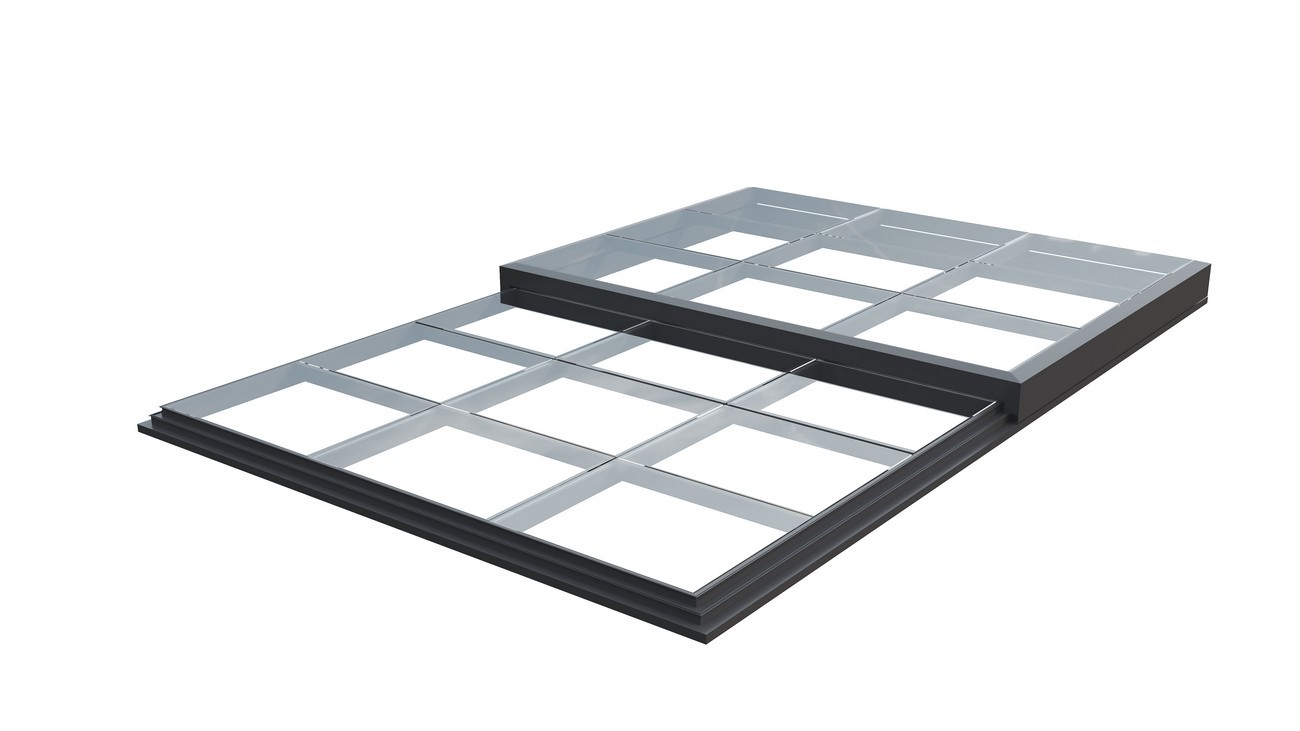

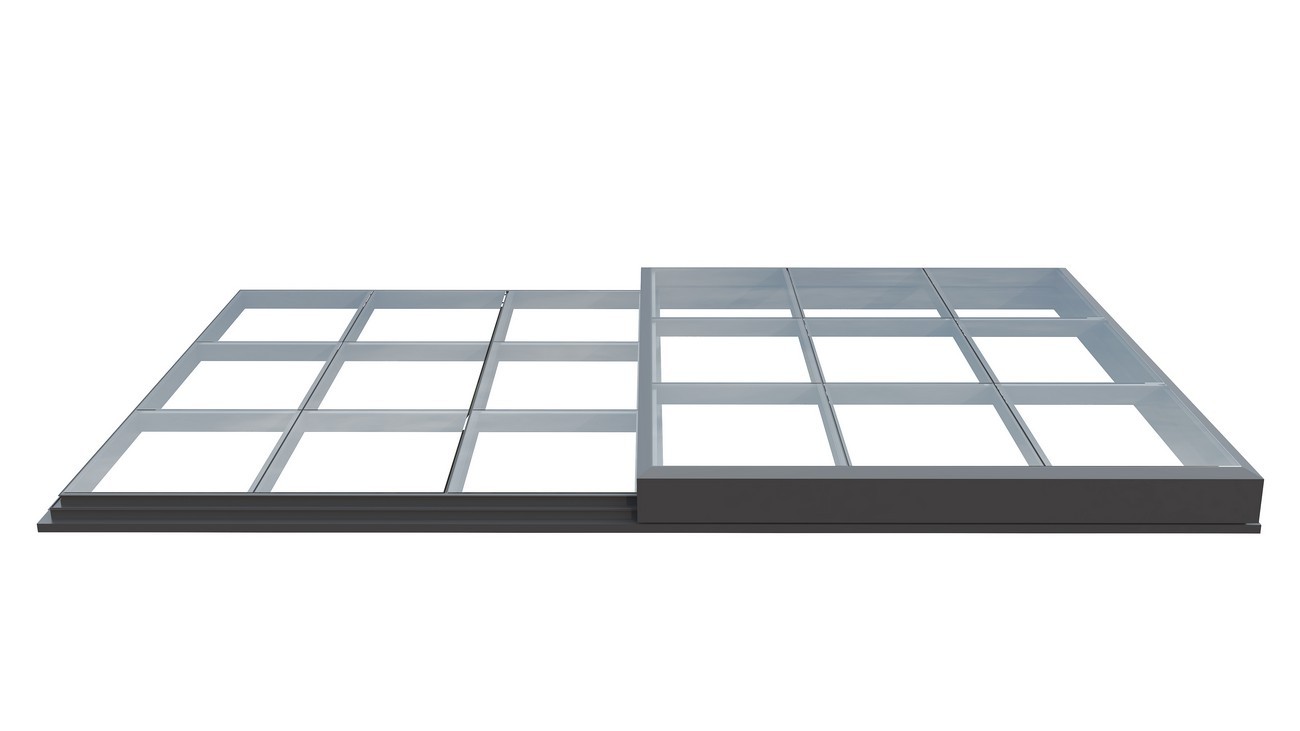

Electrically Operated Sliding Skylight
GZGY Intelligent Sliding roof is suitable for various types of roof lighting and outdoor roof applications systems such as:
The sloping roof, flat roof, roof staircase entrance, glass roof, pergola roof, balcony roof, terrace roof, atrium roof, outdoor glasshouse roof, etc.
Sliding skylight to provide natural daylight, day-to-day ventilation, weather resistance, and maintenance access. It can also be used for access but care must be taken to ensure suitable protection is provided around the opening to prevent falls or injury.
Our sliding rooflight range is ideal for increasing natural daylight and natural ventilation in your building. We offer several standard sliding rooflights which all provide something slightly different, giving you all the options you need to open up the roof and let the outside in.
Design Parameters
Outer frame Specifications:150*390mm
Aluminum wall thickness:4mm
Process tech:Glue solid corner code connection
Single panel max area :≤36㎡
Quality:Aviation-grade aluminum profile
Single panel max Width :≤6m
Surface treatment :Powered spraying
Max Length:≤24m
Standare configuation:
Motor:GE-ZE Maximum torque motor
Glass:5mm+27Ar+5mm ,can customize
Remote:GE-ZE wall controller switch
Optional:
Rain sensor
Hollow honeycomb curtain
Imported motor: SOMFY
WIFI control
Voice control
All sliding skylights can be supplied with remote control and connected to a rain sensor, thermostat and home automation system.
