Outdoor large swimming pool enclosure generally span in 20-40 meters, the supporting pool sunroom span is larger, the general structure, low strength, the sunroom is easy to collapse; Ge-ze exclusively designs special structures for long-span projects to enhance the overall strength of the structure; At the same time we launch Victoria modeling (Victoria), model fashion beautiful and metropolis.
GZGY Motorized Pool Enclosure - Suncover / Operable Roof Systems
GZGY can provide custom design, manufacture, and installation for the following GZGY roof systems:
- Sliding roof systems -- with a singular sliding solid or glass panel
- Tiered roof systems -- a multi-panel sliding system
- Hinged roof systems -- with solid or glass panels

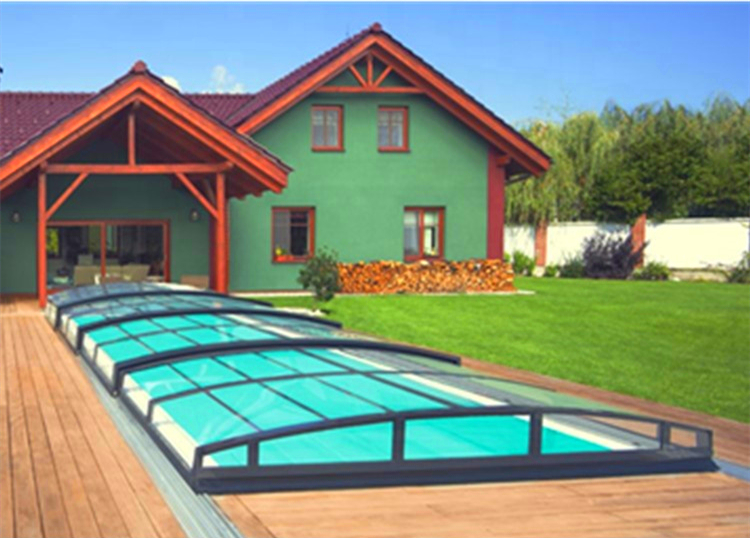

Compared with the conventional swimming pool cover, Low-line Electric Pool Enclosure adopts the design of the extremely low, although at the expense of the part of the height, but won't some marketing of mobile folding and daily use have an effect, the design of the line feeling extremely also brought the modeling of hale and hearty, and reduce the material can save customers a lot of building cost, is the most valuable of sliding swimming pool cover, At the same time, the lower height is convenient for customers to clean and maintain the pool cover at any time, making the pool cover keep clean as new for a long time, which is very suitable for the application of the swimming pool sunroom, mobile ceiling, sunken garden, and other environments
Product Gallery:
Product Details:
Retractable Aluminum Polycarbonate Sunroom
Framework
Main profile material:6061/T6 or AA 6065/T5
Thickness:2-4mm(AA6065-T5) or 3-8mm (AA 6061-T6)
Wind load:100km/h (hurricane)
Snow load:0.5kn/㎡ (snow thickness 50cm)
Color: silver ,white,gray,champagne,bronze or customized color.
Cover Panel
4-6mm solid clear polycarbonate sheet with UV coating
1. Can I customize the size?
Sure. If you like an estimate on ANOTHER MODEL or CUSTOM DIMENSIONS, then we need 3 things:
① Longest Length of pool
② Widest Width of pool
③ Retractable Enclosure Type (See our design above)
2. What is the maximum size of an enclosure cover?
An enclosure can be custom designed to almost any size.
3. With the enclosure, can I use my Pool, Spa, or patio all year round, especially in colder climates?
Yes, our enclosures are designed and built for year-round use. The polycarbonate panels allow the sun’s rays in while providing good insulation properties.
The enclosures frame is equipped with a vinyl sweep that seals in the warm air and keeps drafts out. This creates a warm enclosed environment, minimizing heat loss.
4. Do I need a Permit?
The enclosure is designed to meet local building codes in some municipalities the enclosure may be considered a temporary, removable structure,
and a permit may not be necessary. You will need to contact your municipality to determine if a permit is
needed. If required, XBH will assist you in providing any needed documentation or drawings.
5. What kind of foundation is required to install the pool enclosure?
A flat, level surface is required. Any of the following is acceptable:
• Minimum 3.5″ thick foundation of reinforced concrete
• Pavers set in Concrete
• Wood/composite decking
6. Protection of the enclosure against heavy snow
You should prevent an accumulation of higher amounts of snow on the enclosure during winter. The weight of wet snow is several times higher than fresh snow.
For example, one foot of new snow weighs 5.2 lbs/SF while 3-5 inches of compacted snow weighs 5.2 lbs/SF, and 1 inch of ice weighs 5.2 lbs/SF.
When removing the snow from the enclosure, it should be done symmetrically, preferably from both sides at once, so that the structure is not unevenly loaded.
7. What are the Features and Benefits of a polycarbonate pool enclosure?
Polycarbonate panels are 3mm – 10mm thick (Approx 1/8″ – 1/2″ thick). They provide the perfect combination of strength, high impact resistance, good acoustical insulation, high clarity, and light transmission. The polycarbonate is virtually unbreakable, flexible, lightweight, and weather-resistant and protects against harmful UV radiation.
8. Can I install the enclosure myself?
If you are a handy individual, you should be able to do so. The average dome enclosure requires two people, 2 – 4 hours to install. The floor rails are mounted to a flat surface,the panels are affixed to the rail, and the roof and doors are installed. Typical Pool enclosures require 2-4 people and take one to two days to install.
