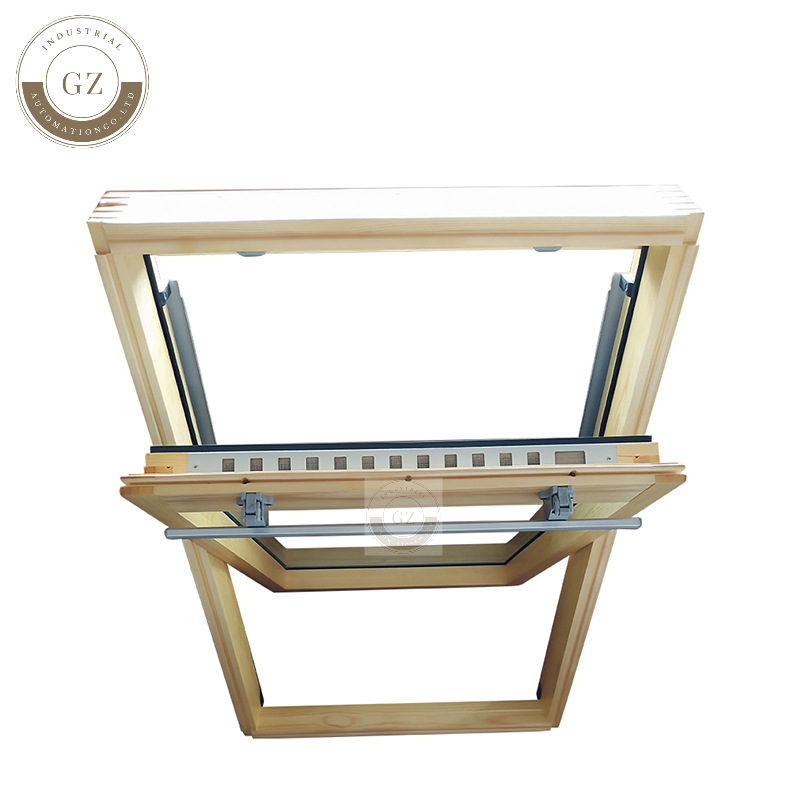

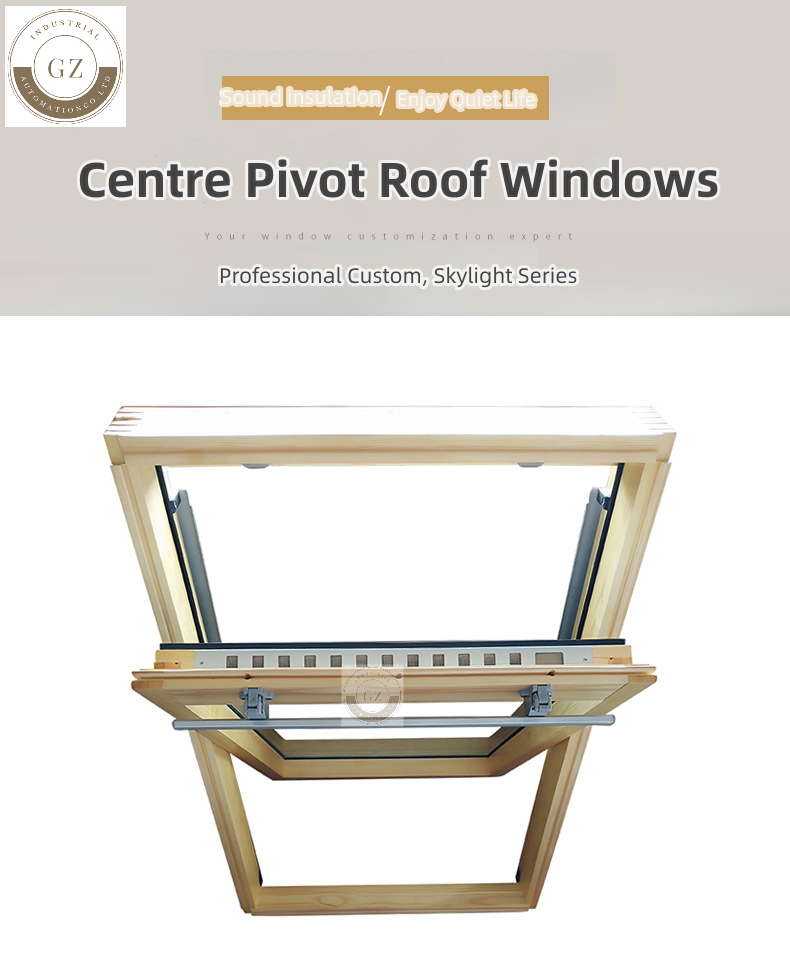

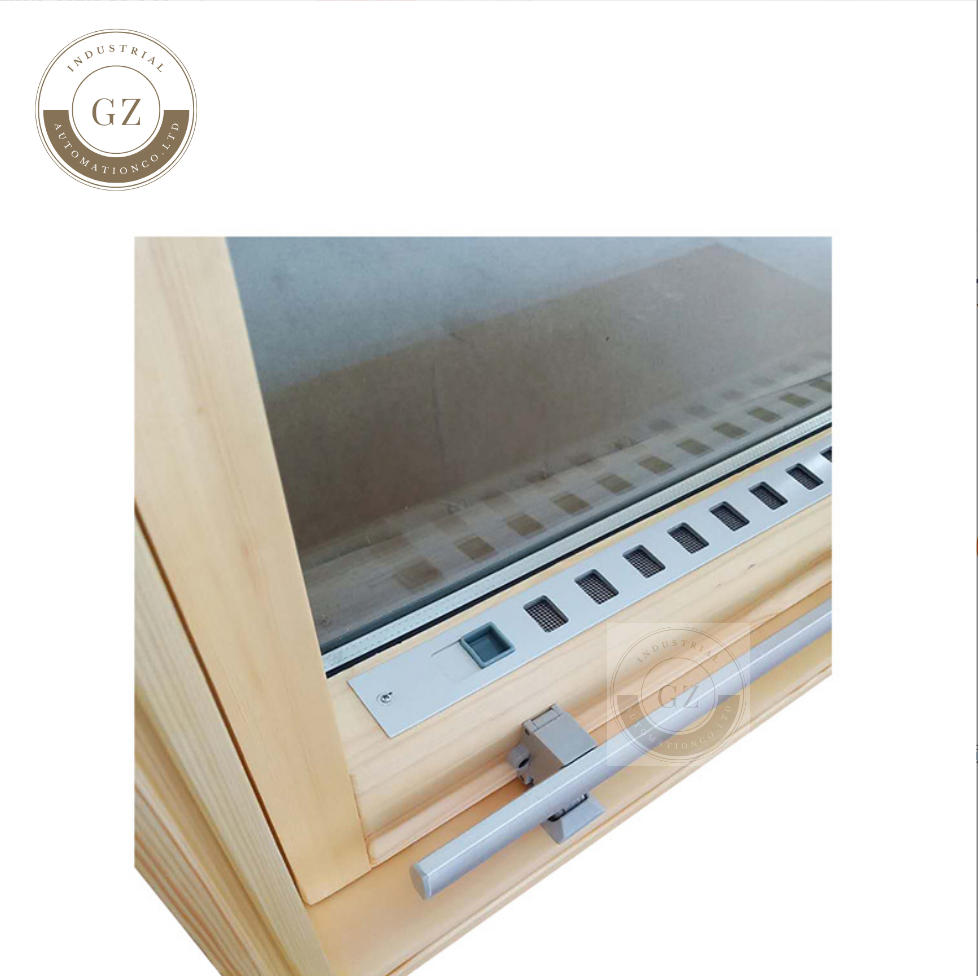

The Centre Pivot skylight: the form is made of high-quality imported scotch pine wood with composite splicing The wood is treated by degreasing sac, except for the knot,drying and anti-corrosion and termite prevention. The surface is coated to ensure the durability of the wood. Improve the ability to withstand environmental influences. The wood surface has a good coating treatment. The insulating glass is 4+9+4mm with good thermal insulation and easy to upgrade. The good mid-suspension design allows the sash to be opened in different ranges, increasing the flow of fresh air. The sash can be flipped180°to lock the outer frame for easier and safer cleaning. This Centre Pivot Roof Window has hinges on both sides for opening control.

Model	A3	A4	A5	A6	B1	B2
Skylight Size	550*980	780*980	780*1180	780*1400	1140*1180	1140*1400
Hole Size	570*1000	800*1000	800*1200	800*1420	1160*1200	1160*1420

Falshing Kits and Hardware Parts
